Composite Body 5

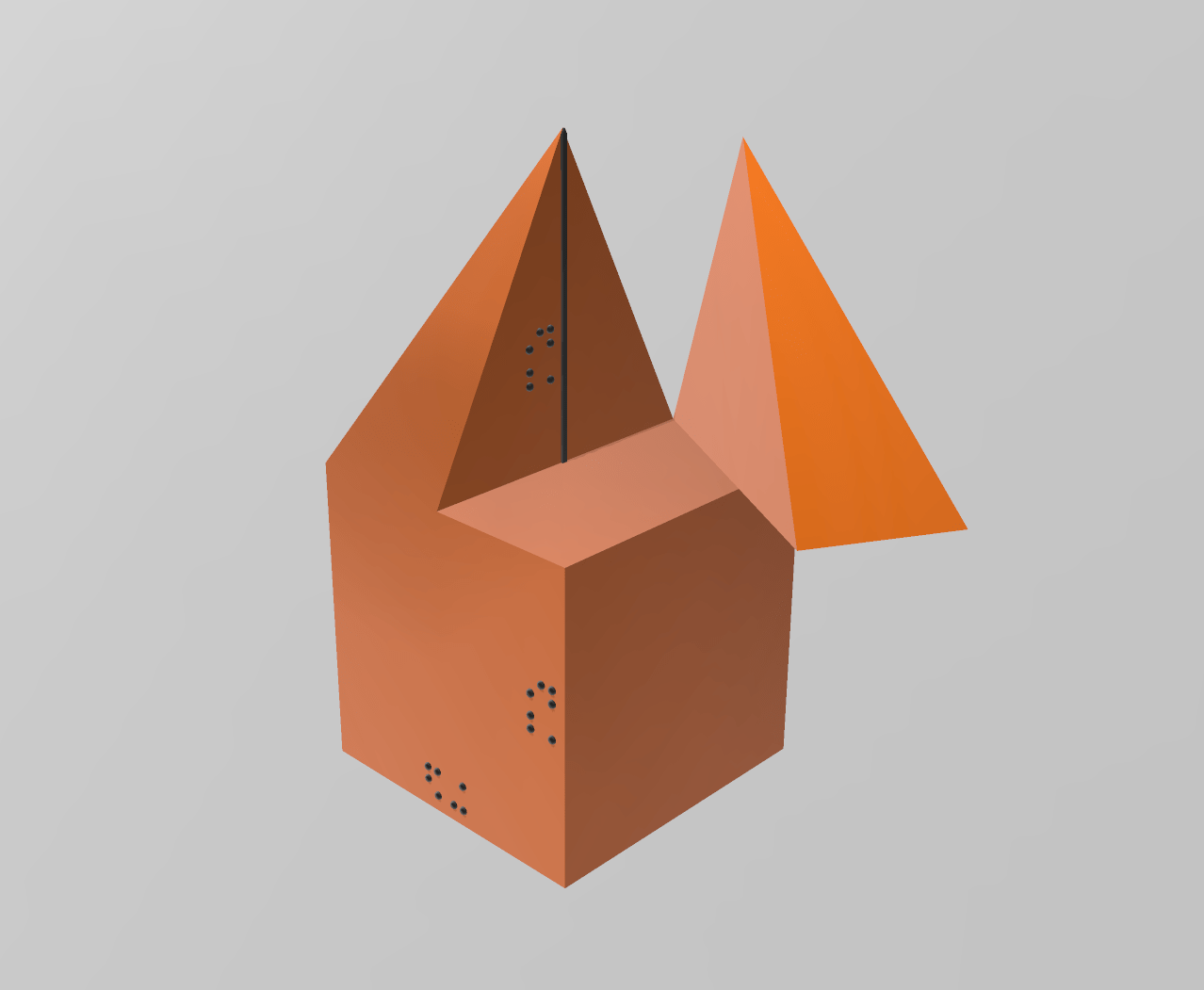

Description of the model

This composite body can be used in mathematics lessons.

All measurements are printed in 8 point Braille to calculate the volume and surface area. Some of the measurements have to be derived mathematically, as they are not printed on every edge.

The two halves have to be connected with adhesive tape after printing (acts as a hinge).

Printing instructions and tips

The model can be printed in the saved orientation. Braille is therefore not applied to any horizontal surface.

Infill of about 2-3% sufficient.

Downloads

  • Composite-body-5-preview-not-for-printing.3mf
  • Composite-body-5_part2.stl
  • Composite-body-5.skp
  • Composite-body-5_part1.stl
    • Download All
