Steckfeld für Linien (ohne Diagonalen)

Description of the model

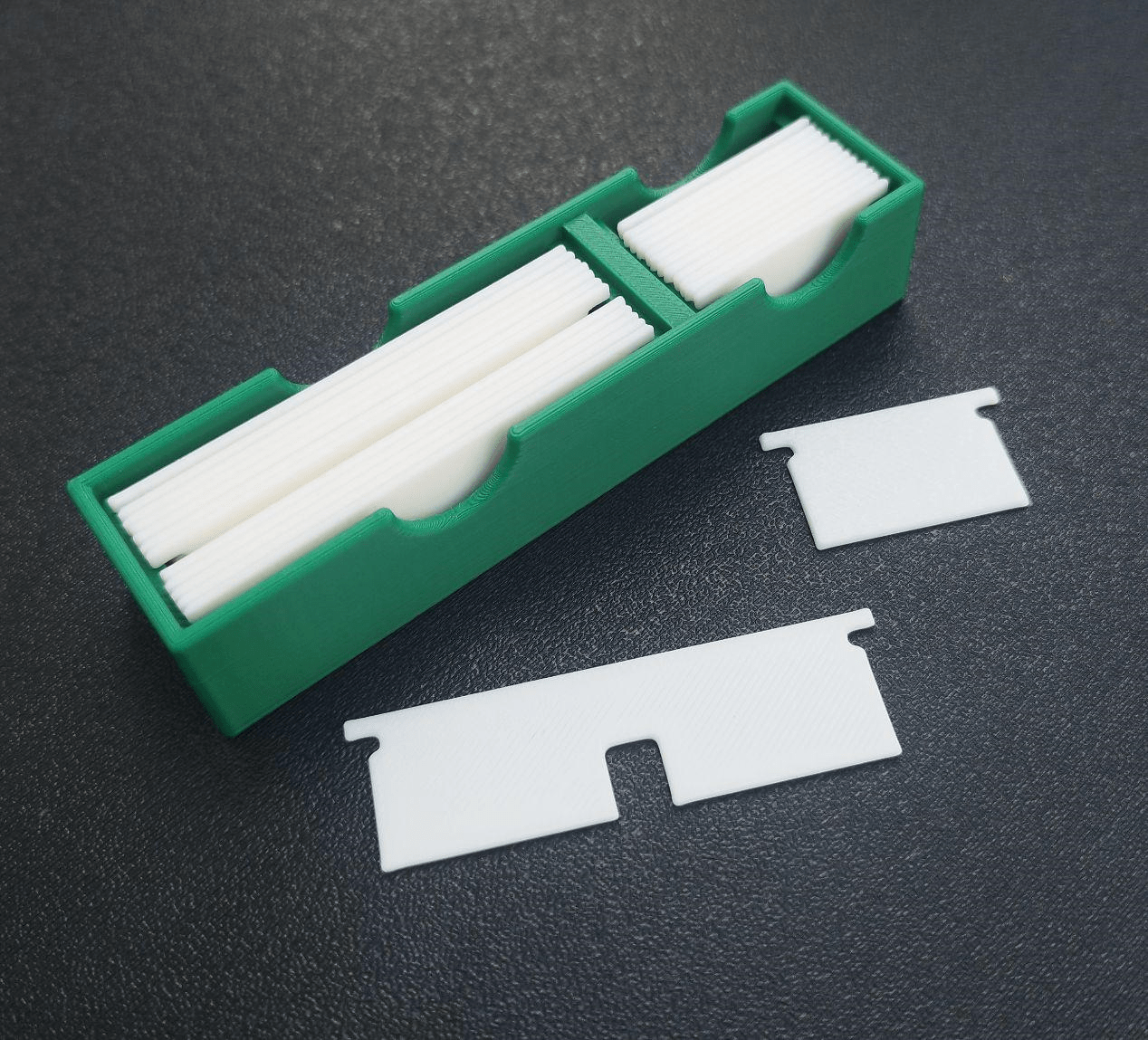

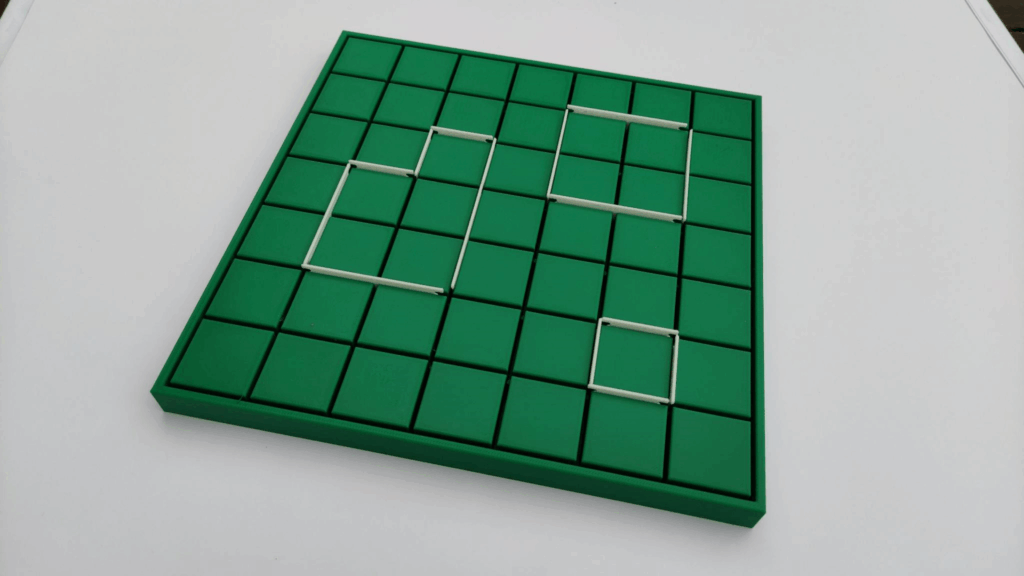

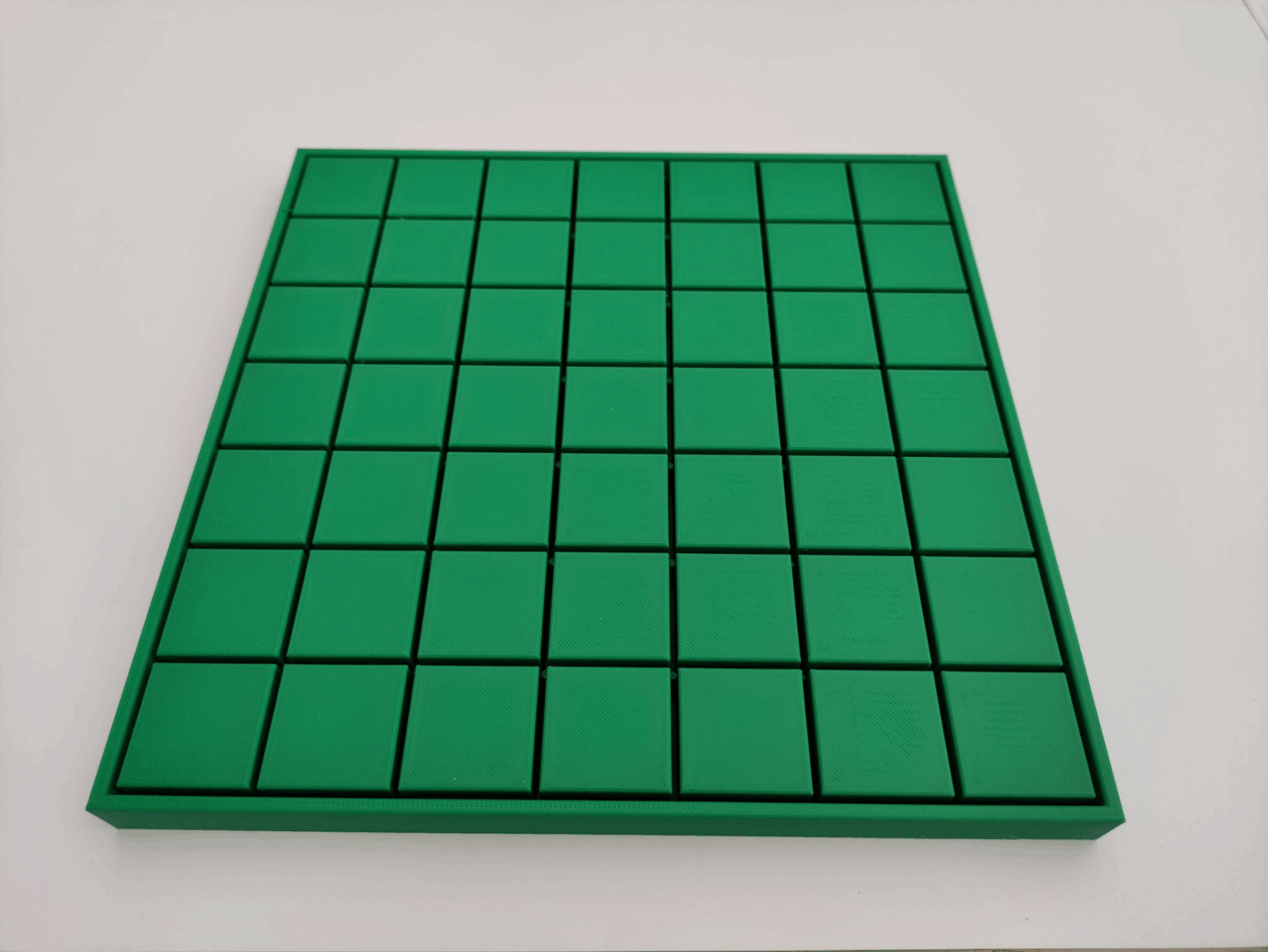

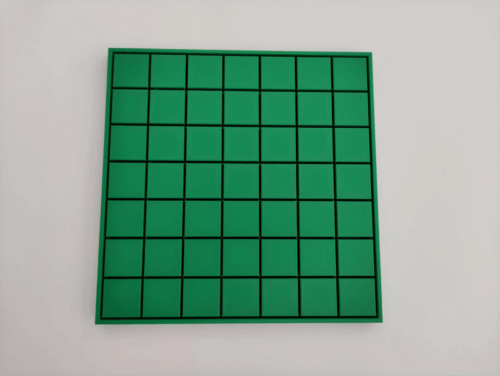

Bei dem Modell handelt es sich um ein Brett, auf dem senkrechte und waagerechte Linien verlaufen. In diese Linien können kleine Plättchen gesteckt werden, sodass fühlbare Linien entstehen. So können geometrische Figuren wie Vierecke (Parallelogramme, Trapeze, Rechtecke) oder andere Formen ertastbar nachgebildet werden.

The model consists of a board with vertical and horizontal lines. Small tiles can be inserted into these lines to create tactile lines. This allows geometric shapes such as quadrilaterals (parallelograms, trapeziums, rectangles) or other shapes to be reproduced in a tactile form.

Printing instructions and tips

Ich habe das Steckfeld um 150% vergrößert, da es sonst sehr klein und für die Schülerinnen und Schüler schwer zu handhaben ist.

Da ich das Steckfeld mit Variablen gestaltet habe, kann ich auch andere Feldgrößen erstellen. Wenn ihr andere Wünsche habt, schreibt mir.



I have enlarged the plug-in field by 150% because otherwise it is very small and difficult for the pupils to use.

Since I designed the plug-in field with variables, I can also create other field sizes. If you have any other requests, please write to me.

Downloads

Preview

Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.

Additional Models

  • Plattchenspender-ohne-Diagonlen-1.stl
  • kurze-Seite_2cm-1.stl
  • kurze-Seite_2cm-doppelt-1.stl
