Schaltzeichen für Stromkreis (Klemmbausteine)

Description of the model

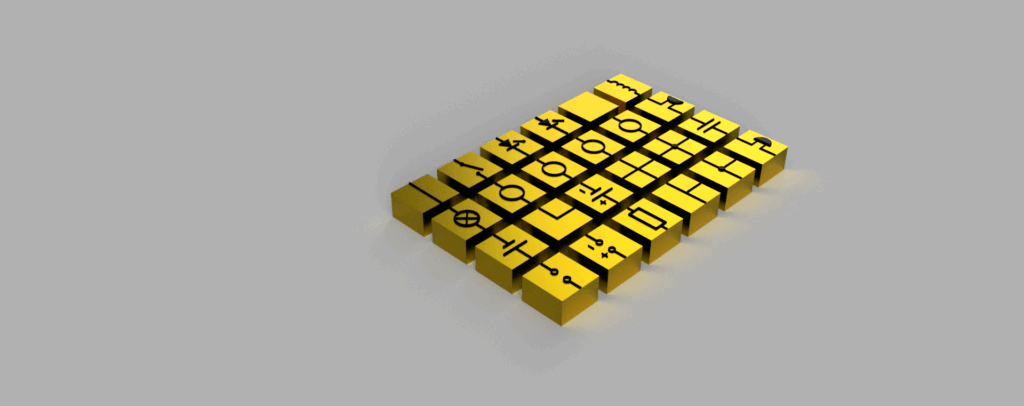

mit bekannten Klemmbausteinsystem kompatible Bausteine  für Schaltsymbole, die sich gut zweifarbig drucken lassen. Für M, V, A sind “leere” Kreise vorgesehen, in welche Buchstaben geklebt werden können.



Printing instructions and tips

Stützstruktur im Inneren wird benötigt. Farbwechsel beim ersten Layer der Symbole sinnvoll. In der 3mf (zumDrucken) finden sich alle Symbole, sie wurden für die stl in zwei Teile aufgeteilt (passen jeweils auf das Druckbett).
