Tactile Protractor (goniometer) for blind users (Brabo)

Description of the model

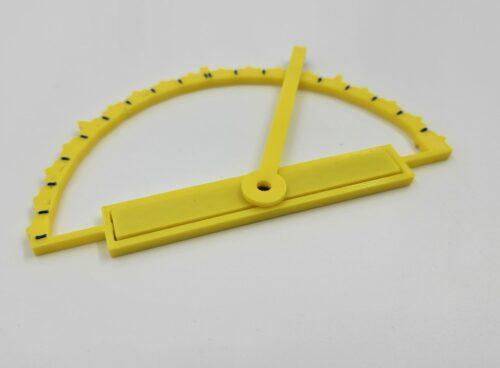

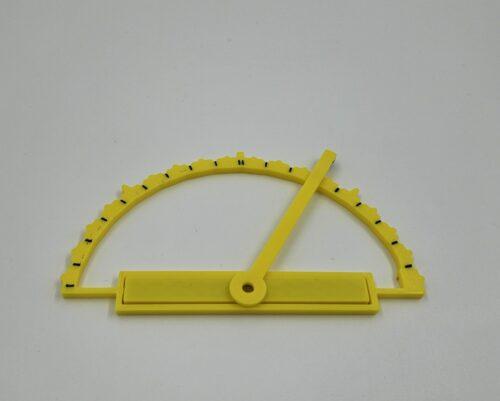

Protractor (or goniometer) which can be used by blind users because of the tactile elements.

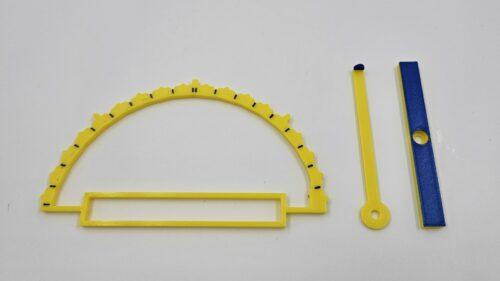

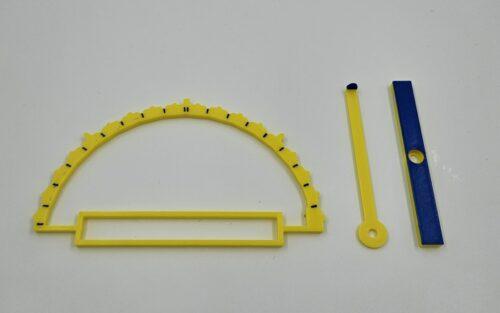

assemble the pieces after printing with a bolt

Printing instructions and tips

A layer height of 0.2 mm should be good. you can add a color change at the right height to have contrasting colors.
